100 tons mobile crane
Price can be negotiation
Also provide other models
2025 year made in China

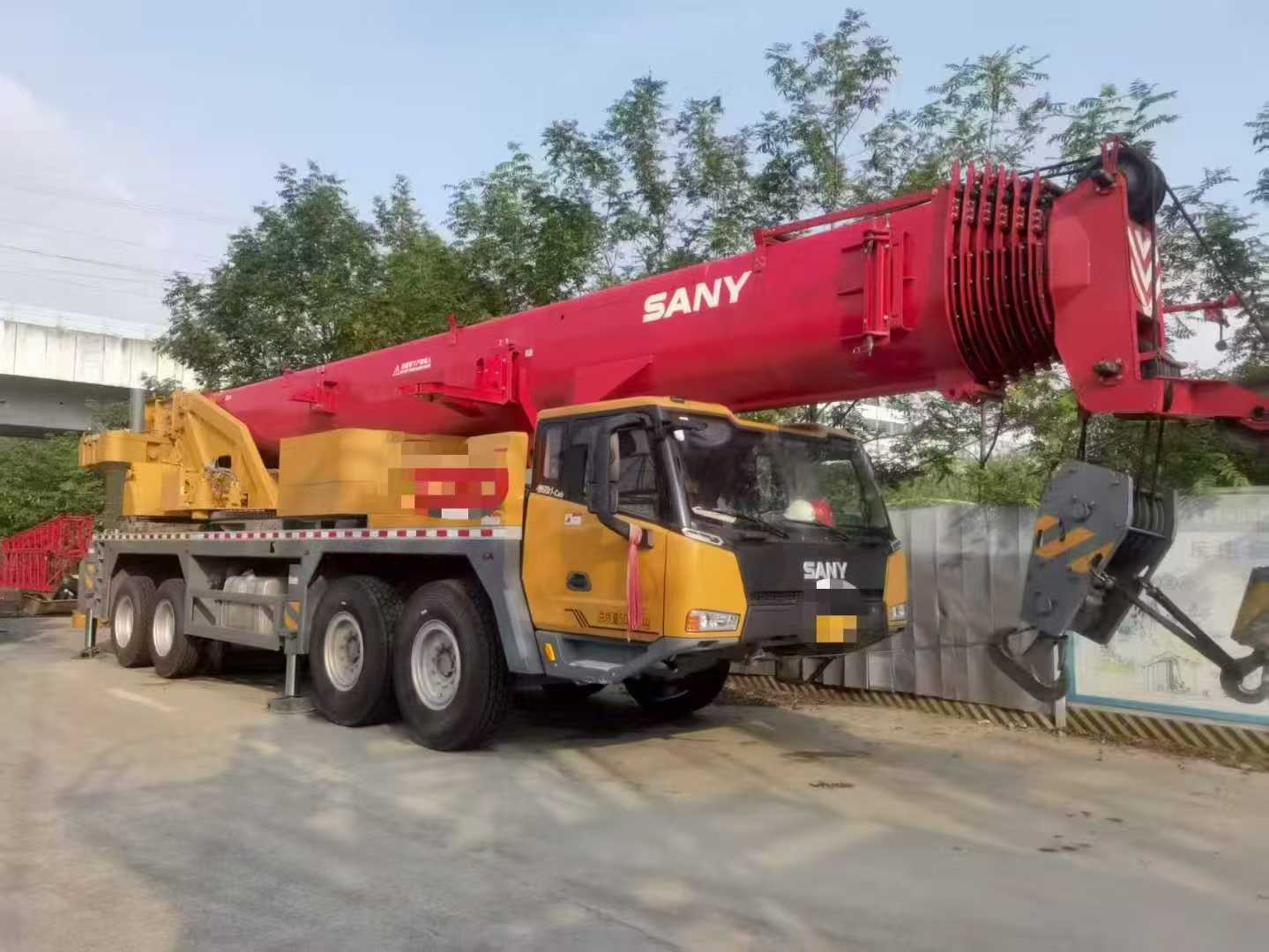

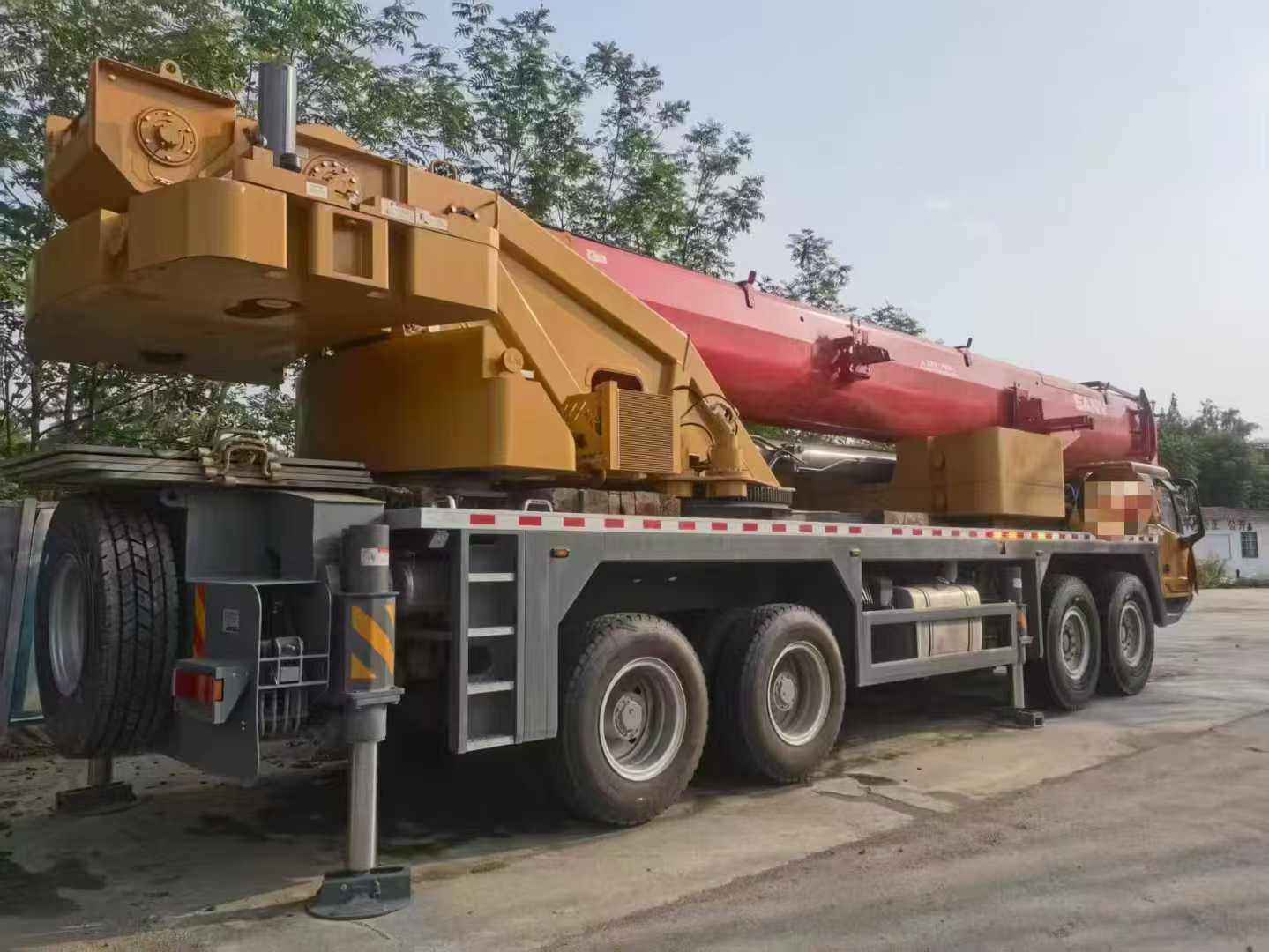

ST1000C7-8 mobile crane is 100 tons capacity with 70 m boom length, 36 tons counterweight. We can also 25 tons, 50 tons, 75 tons, 80 tons, 100 tons,200 tons in China. And other machines like excavator, loader, dozer, grader, roller, forklift, skid steer loader, and so on. If you have other requirements pls contact us.
The hydraulic system, including key hydraulic components such as the main oil pump, swing pump, main valve, winch motor, and counterbalance valve, all utilize high-quality components for high system reliability. Precise parameter matching ensures superior controllability. A unique closed swing buffer system ensures smoother swing start-up, braking, and operation, with superior micro-motion. Advanced single-cylinder latch-type telescopic arm technology and a cylinder-arm pin interlocking system combine mechanical, electrical, and hydraulic protection for even greater reliability.
The frame, designed and manufactured by Sany, adopts a front outrigger box + high-strength rectangular cross-section frame. The frame is higher and wider, and compared with the channel-type frame, the rigidity is increased by 30%, and the load-bearing capacity is greatly improved.
The control room features a brand-new interior design and multi-channel three-dimensional air supply, creating a more spacious and comfortable working environment. It is constructed of corrosion-resistant steel plates and safety glass, and is equipped with humanized features such as a fully covered soft interior, a panoramic sunroof, adjustable seats, front pedals, electrically retractable side pedals, integrated LED lighting, and electric wipers, making operation more comfortable and easy. It is equipped with a high-definition color display and standard winch monitoring, achieving an organic combination of the main console and the operation display system, making all working conditions of the lifting operation clearly visible.

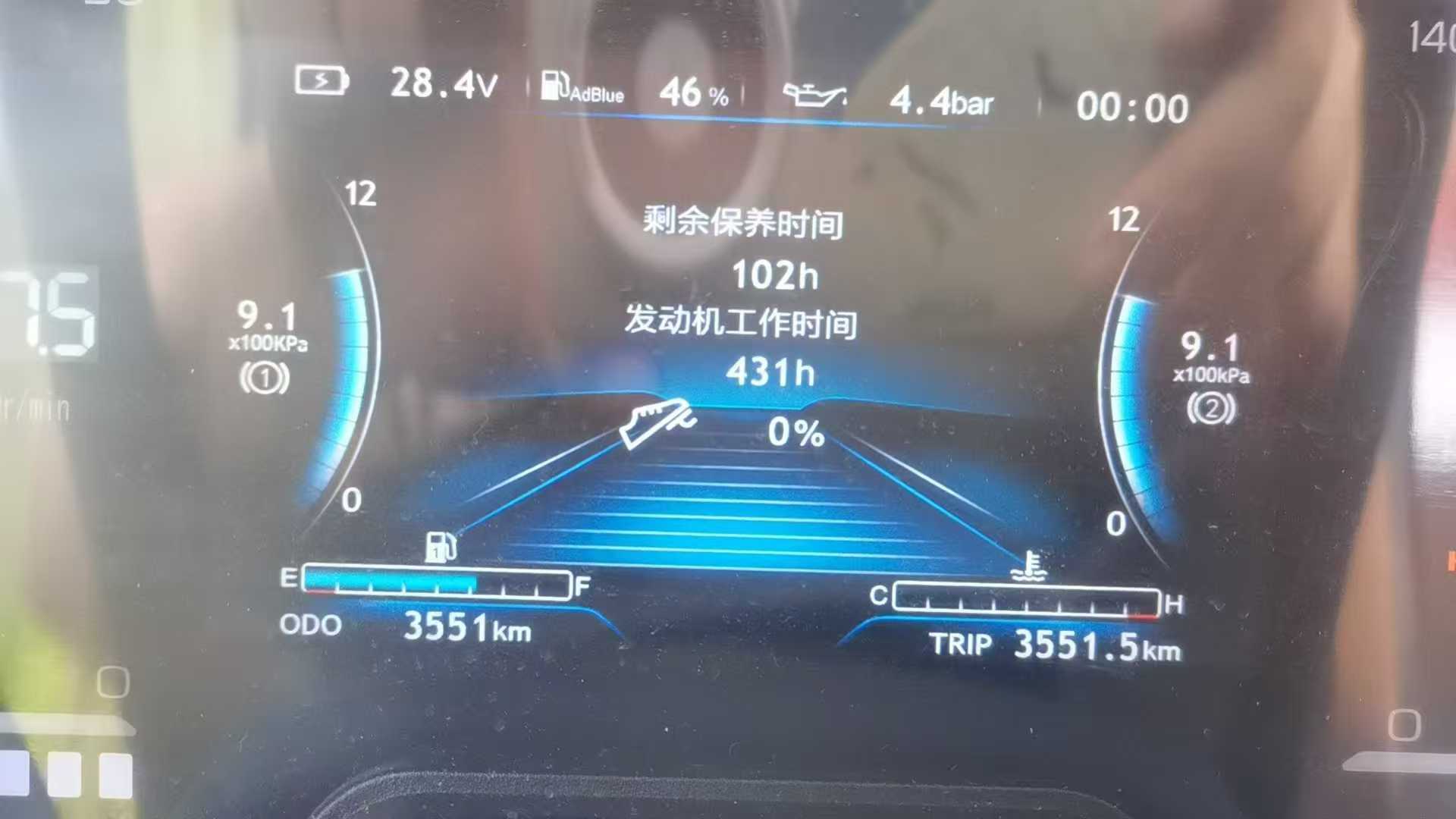

Electrical System and Bus Instrumentation: The bus instrumentation integrated with the intelligent electrical system provides real-time control of driving parameters, making the ride more relaxed. It also features an engine fault warning function, making troubleshooting more efficient. Outrigger Automatic Control System: Electronically controlled outriggers with automatic leveling and fault diagnosis and warning functions offer flexible and fast operation, saving time and effort. The fully intelligent control center utilizes fuzzy PID control, automatic retraction and extension, power matching, and energy-saving control modules to ensure smooth and comfortable operation.
Specification:
| Year | Model | Max. rated lifting capacity | Max. allow gross mass | Engine model | Engine power | Boom length | Counterweight | Working hours | Dimension |
| 2025 | 1000C7-8 | 100T | 50000 kg | YCK 11430-66 | 316 kw | 70m | 36 tons | 1369.7 hrs | 15000*3000*3960mm |
Our team is always at your service. Do you have some inquiries to make or need answers to your questions? Contact our experts who are available 24/7 to give you swift replies!
