KAI SHAN open use Rig
Compact structure
Efficient dust collection system
Applicable to small and medium-sized open-pit mining

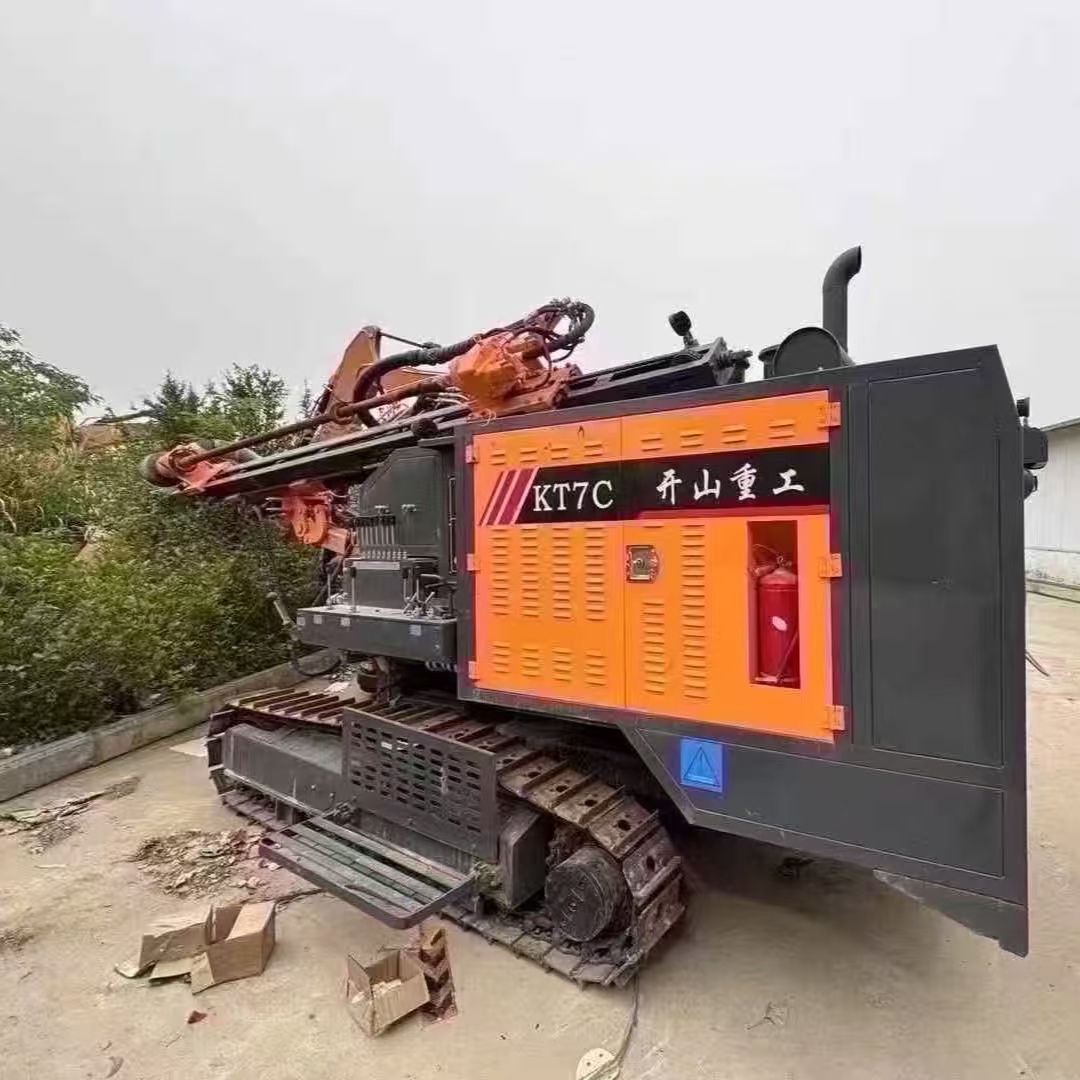

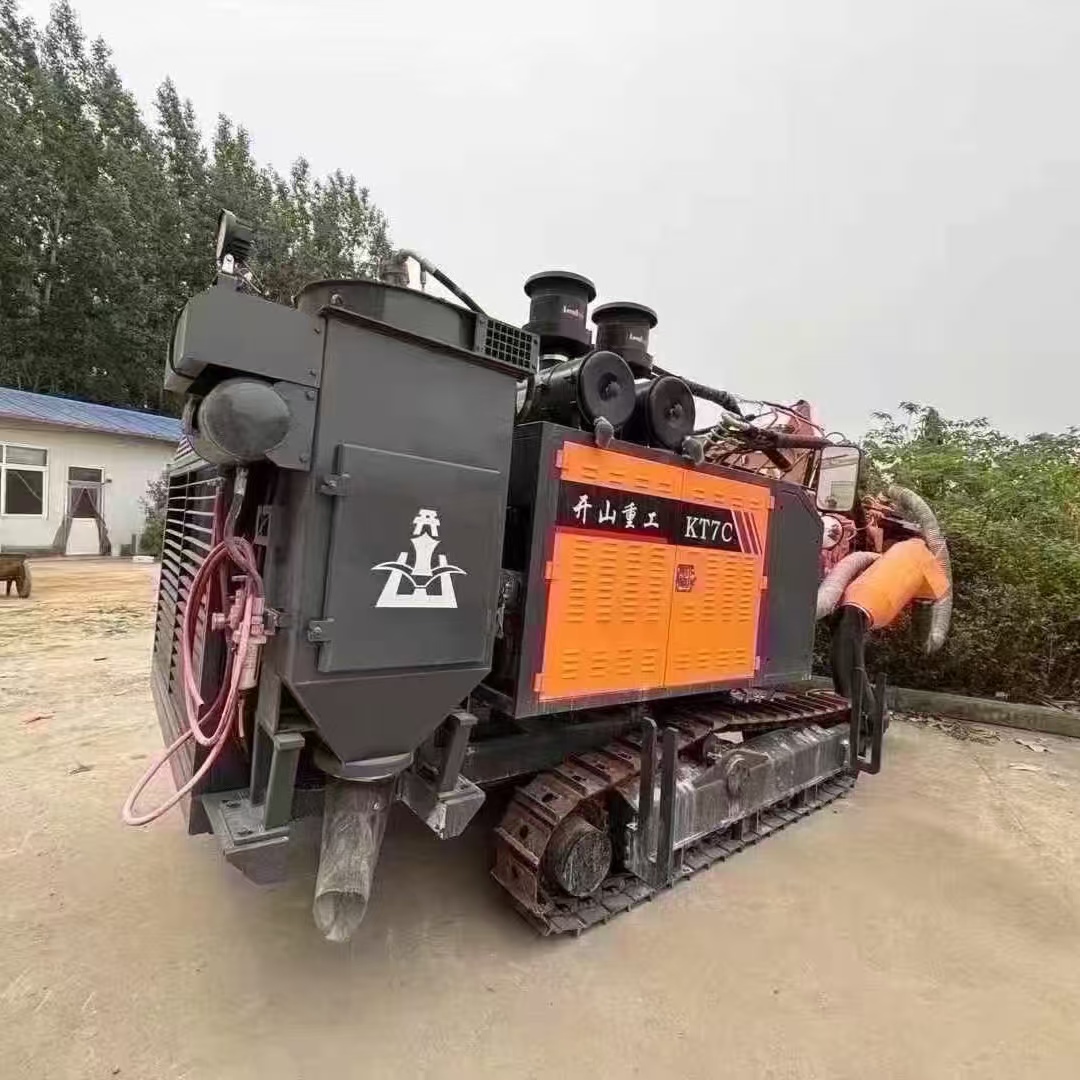

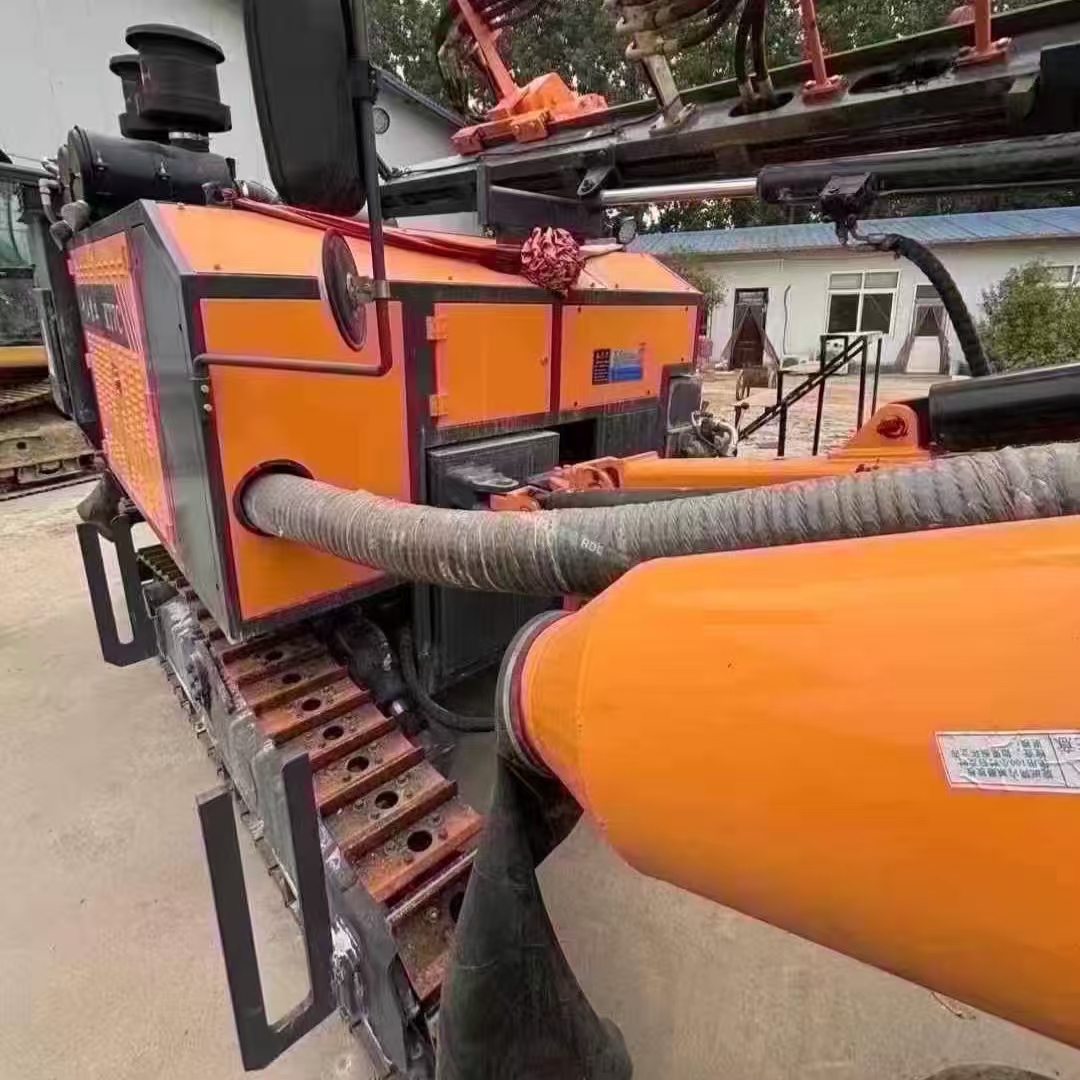

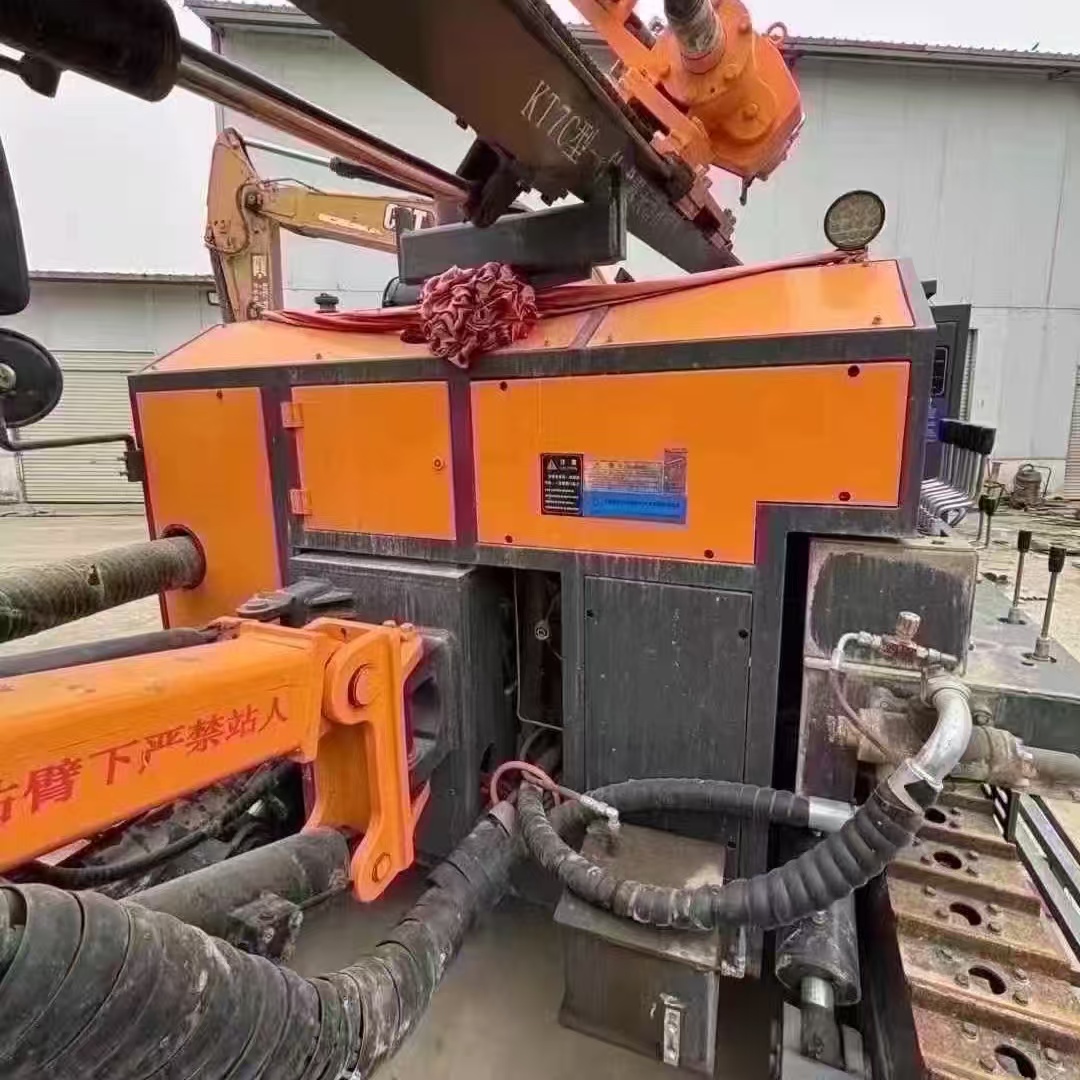

The KT7C integrated down the hole drill rig for open use is an advanced drilling device integrating the down the hole drilling system and screw air compressor system, It is capable of drilling vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-splitting holes.
Equipped with the Yuchai China stage lll Engine and efficient dust collection system, the drill rig meets national standards for emissions and environment. It is typical of energy conservation, efficiency, safety, environment-friendliness, flexibility, simple operation and stable performance, etc.
Strong climbing ability, suitable for rough surfaces.
Wide adaptability, compatible with various DTH impactors, capable of drilling holes of varying diameters and depths at various locations and angles.
Can be equipped with a dry or wet dust collector during operation, effectively reducing dust pollution and protecting workers.
Anti-interference system for safe operation.

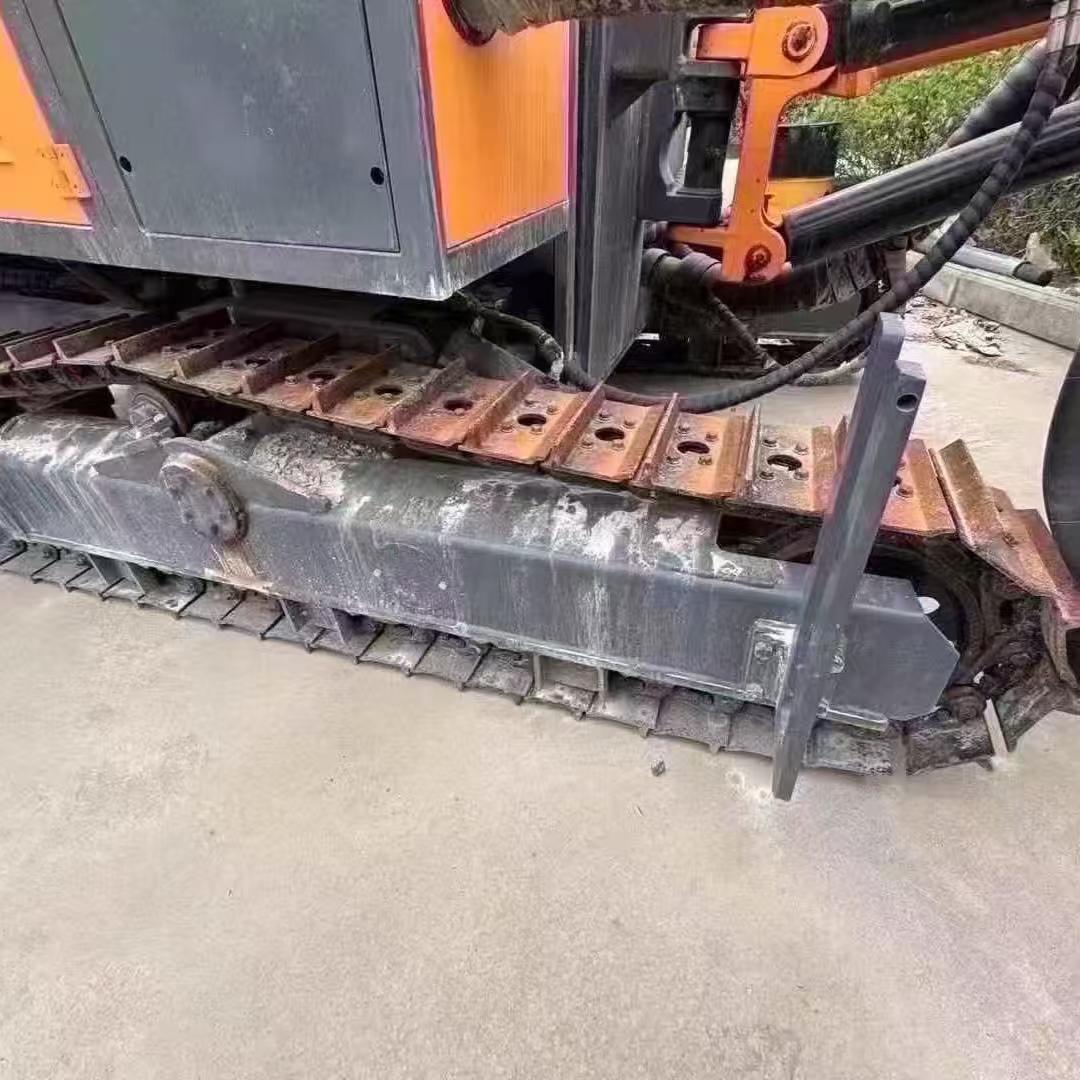

Tracked undercarriage with track oscillation system.
Specifications:
| Year | Brand | Model | Diameter of hole | Depth of hole | Walk speed | Package power | Weight | Climbing capacity | Dimension |
| 2024 | KAI SHAN | KT7C | 90-135mm | 24m | 4km/h | 176 kw | 9500 kg | 25 degree | 8000*2350*2700mm |
