Flexibility
Modular design
Customer satisfaction
Large capacity bucket
Made with imported wear-resistant steel plates, thickened plates are used in key locations to reinforce platforms and work equipment, and it offers excellent all-around visibility with over 51% glass transmittance.
The superior slewing torque among excavators of the same tonnage provides more powerful slewing motion, thus effectively ensuring the efficiency of simultaneous movement.
Loading control technology, PID control, load abrupt change technology and heavy-duty power boost technology are used to reduce fuel consumption, improve controllability and working efficiency; Compared with the previous generation model, fuel consumption can be reduced by 6.8% at the same efficiency.
The track roller is used as carrier roller. The service life of the track roller is longer with higher bending and torsional resistance since it’s supported on both sides. The track derailment is avoided more effectively.
The boom and arm are designed with large cross section. The overall cross section of the boom and arm is increased by 9% and 6% respectively. The stress bearing capacity is greater with larger cross section.
Specifications:
| Year | Model | Brand | Engine power | Engine model | Weight | Capacity | Boom length | Bucket digging force | Dimension |

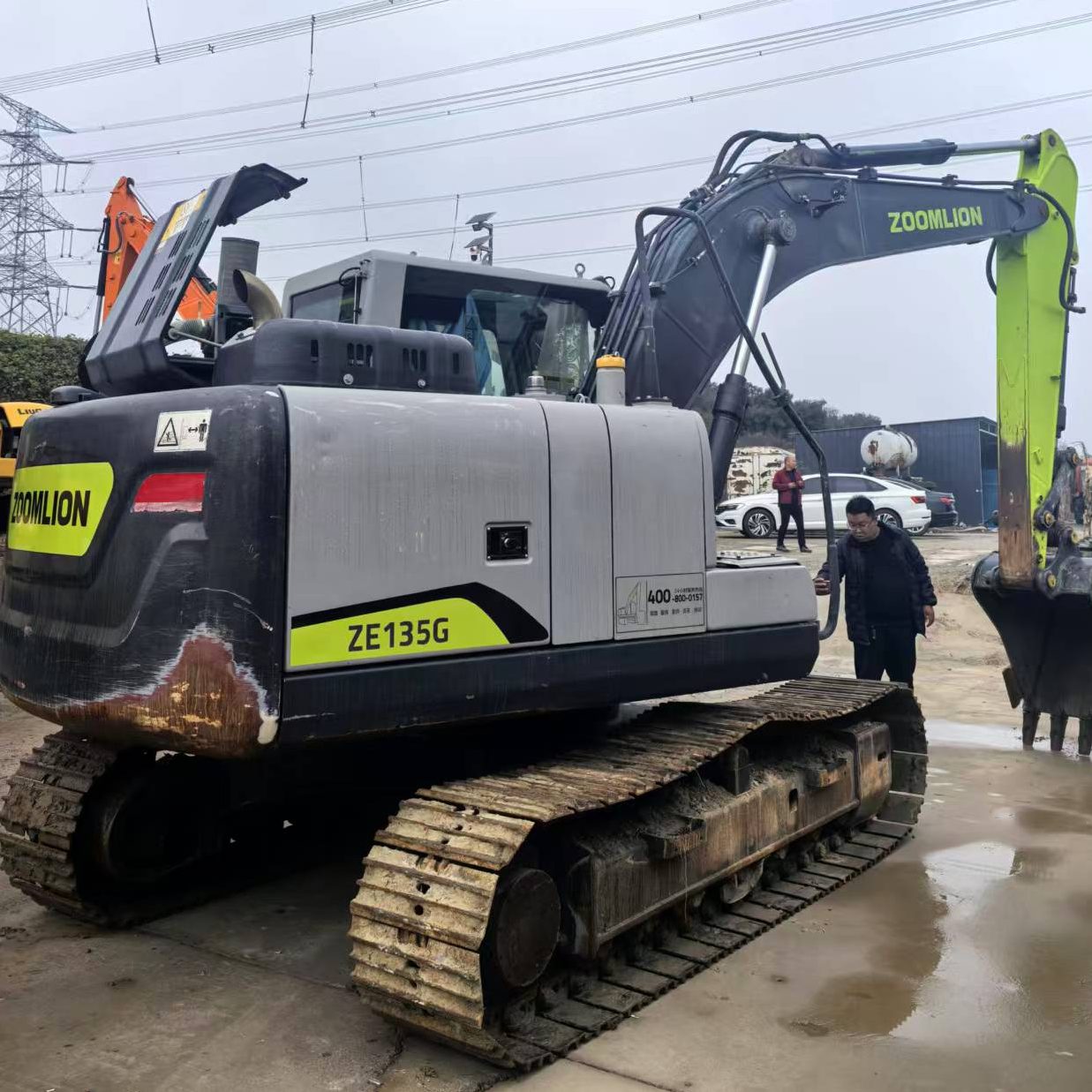

| 2023 | ZE135G | ZOOMLION | 89 kw | F45CS4119 | 13500 KG | 0.55 m3 | 4900mm | 108 kN | 7940*2490*2940mm |
